Access XXL
MAGNETIC CONTROL BARRIERS FOR WIDE LANES
MAGNETIC CONTROL BARRIERS FOR WIDE LANES

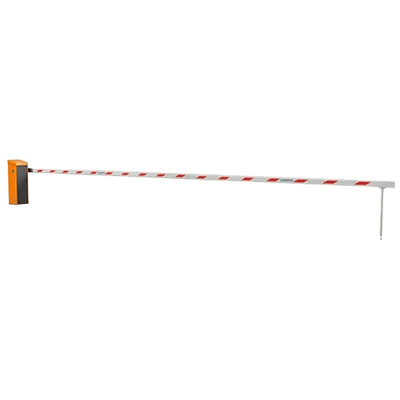

Magnetic Access XL2 / XXL is a type of wide-lane traffic barrier typically installed at large entrances to control access with single-barrier efficiency. It supports lane widths up to 10.0 m and features MHTM™ drive technology for maintenance-free operation up to 2 million cycles. Magnetic Access XL2 / XXL with IP54 protection and optional boom skirts is a robust solution for secure and compliant access control.
| Model | Access XXL |
| Brand | Magnetic Control |
| Categories | Barrier Gate, Magnetic Control |
Description
| Description | Parameter |
|---|---|
| Lane width | Max. 10.0m |
| Opening/Closing time | 8.0s |
| Power consumption | Max. 30W |
| Drive Technology | MHTM™ |
| Voltage | 85–265 VAC, 50/60 Hz |
| Housing dimensions (W x D x H) | 435 x 360 x 1164 mm |
| Enclosure rating | IP54 |
| Temperature range | −30 to +55 °C |
| Weight | 112 kg |
