DS-TCG406-E
4 MP ACCESS ANPR CAMERA
4 MP ACCESS ANPR CAMERA

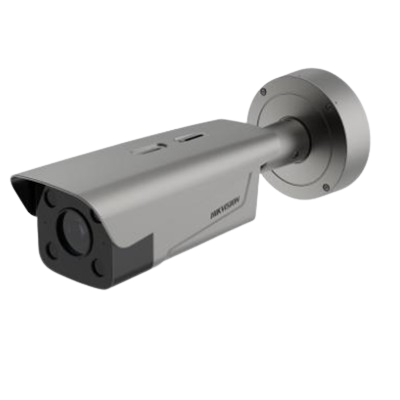

DS-TCG406-E is a type of DarkFighter access ANPR camera typically installed in car parks and toll gates to capture and recognize vehicle license plates with high efficiency. It supports 4 MP (2688 x 1520) resolution with 2.8 to 12 mm motorized vari-focal lens and features multi-frame LPR technology for smooth operation with license plate recognition rates of 98.5% or higher. DS-TCG406-E with IP67 and IK10 protection and barrier gate relay control is a reliable solution for intelligent and secure traffic management.
| Model | DS-TCG406-E |
| Brand | Hikvision |
| Categories | ANPR System, Hikvision |
Description
| Description | Parameter |
|---|---|
| Resolution | 4 MP (2688 x 1520) |
| Focal Length | 2.8 to 12 mm / 8 to 32 mm motorized vari-focal |
| Frame Rate | 30 fps (2688 x 1520) |
| Supplement Light Range | Video: 25 m (2.8-12 mm) / 50 m (8-32 mm) |
| Protection | IP67, IK10 |
| Power | 12 to 24 VDC / PoE (802.3af, 44V to 57V), 10W max |
| WDR | 140 dB |
| Operating Temperature | -30°C to 70°C |
| Dimension | 415 x 145 x 145 mm |
