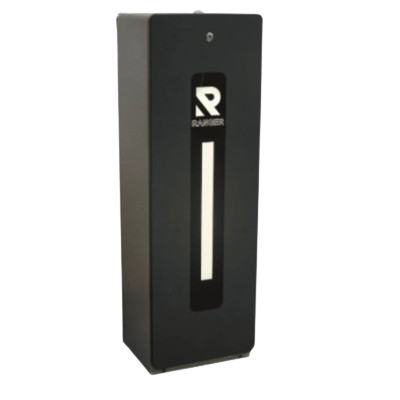

G-RGB-DC-ECO-915-L/R-LED
RANGER 3 SEC DC BRUSHLESS LED BARRIER
RANGER 3 SEC DC BRUSHLESS LED BARRIER
G-RGB-DC-ECO-915-L/R-LED is a type of automatic barrier typically installed in car parks and commercial centers to manage vehicle access with high efficiency. It supports telescopic boom lengths up to 4.5 m and features a DC 24V brushless motor for smooth operation with speeds as fast as 3.0 seconds. G-RGB-DC-ECO-915-L/R-LED with IP54 protection and obstacle detection auto-reverse is a reliable solution for energy-efficient and safe traffic management.
| Model | G-RGB-DC-ECO-915-L/R-LED |
| Brand | Ranger |
| Categories | Barrier Gate, Ranger |
Description
| Description | Parameter |
|---|---|
| Lane Width | 4.5 m |
| Open/Close Time | 3.0 s |
| Power Consumption | 160W, DC 24V, AC 220V/110V 50Hz to 60Hz |
| Motor Type | DC 24V brushless motor |
| Boom Arm Type | Telescopic Straight Arm |
| Operation Lifespan | 3 million times |
| Protection Grade | IP54 |
| Temperature Range | -30°C to 75°C |
| Dimension | 350 x 302 x 1020 mm |
