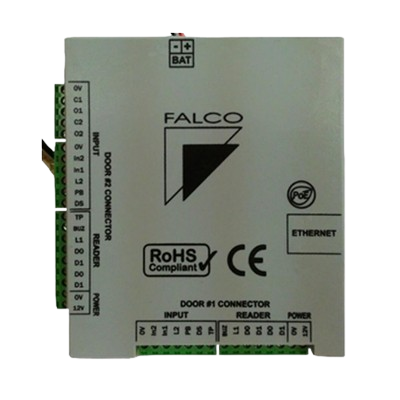

IP PoE CF Controller
GREEN POWER IP INTEGRATED POE ONBOARD CONTROLLER
GREEN POWER IP INTEGRATED POE ONBOARD CONTROLLER
IP PoE CF Controller is a type of IP integrated PoE onboard access controller typically installed in offices and commercial buildings to manage door access with high efficiency. It supports up to 2 doors with 4 EM locks and 4 proximity readers over a single Cat 5e/6 cable and features Green Power PoE technology for smooth operation with AES-128 encryption security. IP PoE CF Controller with CE and RoHS certifications and onboard battery backup charger is a reliable solution for secure and convenient access control management.
| Model | IP PoE CF Controller |
| Brand | Falco |
| Categories | Access Control, Falco |
Description
| Description | Parameter |
|---|---|
| Processing Unit | Freescale CF microcontroller 32 bits |
| Memory | 1024 kb EEPROM & 16 Mb FLASH |
| Battery Charger | 12 VDC / 7AH (onboard backup charger, max 2.0A) |
| Reader Supported | 1 door (2 readers) / 2 doors (4 readers), 12VDC @200mA per reader port |
| Reader Technology | Standard Wiegand format (26 bit - 64 bit) |
| Users / Events | Standard 70k users, 40k events; upgradable to 150k users, 80k events |
| Dimension / Weight | PCB: 137 (L) x 117 (W) x 15.5 (H) mm / 25g |
| Operating Temperature | 0°C ~ 55°C / 32 ~ 165°F |
| Certifications | CE, RoHS |
