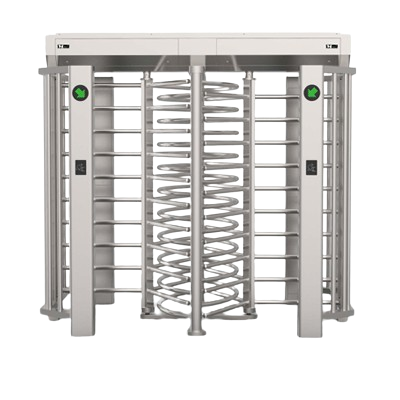

TTS730
DUAL LANE FULL HEIGHT TURNSTILE
DUAL LANE FULL HEIGHT TURNSTILE
TTS730 is a type of dual lane full height turnstile typically installed in stadiums and industrial facilities to manage high volume pedestrian access with high efficiency. It supports dual passage lanes of 580 mm each with 120W power consumption and features SS304 stainless steel housing for smooth operation with 120 degree arm rotation. TTS730 with IP52 protection and 20 to 25 people per minute throughput per lane is a reliable solution for heavy duty and secure perimeter management.
| Model | TTS730 |
| Brand | Mag |
| Categories | Turnstile, Mag |
Description
| Description | Parameter |
|---|---|
| Power Supply | AC220/110V +/- 10%, 50/60Hz |
| Passage Width | 580 mm per lane |
| Arm Rotation Angle | 120 degrees |
| Pass Speed | 20-25 people/min per lane |
| Housing Material | SS304 Stainless Steel |
| Protection | IP52 |
| Working Temperature | -25 to 70 degree Celsius |
| Dimension | 2400 x 1580 x 2300 mm |
| Power Consumption | 120W |
