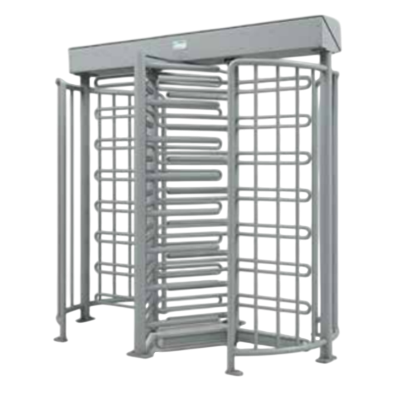

MPT High Double Turnstile
HIGH DOUBLE TURNSTILE
HIGH DOUBLE TURNSTILE
MPT High Double Turnstile is a type of full height double turnstile typically installed in stadiums and leisure parks to control two independent passageways with high efficiency. It supports 3-wing and 4-wing configurations with throughput of approximately 30 persons per minute and features Magnetic Safe Drive Solution MSDS for smooth operation with DIN EN 17352 safety compliance. MPT High Double Turnstile with IP43 enclosure rating and space-saving dual passage design is a reliable solution for secure and efficient outdoor access management.
| Model | MPT High Double Turnstile |
| Brand | Full Height |
| Categories | Turnstile, Magnetic, Full Height |
Description
| Description | Parameter |
|---|---|
| Number of Wings | 3 (120 degrees) / 4 (90 degrees) |
| Throughput | Approx. 30 persons per minute |
| Drive Technology | MHT (Motorized) / Electro-mechanical / Mechanical |
| Voltage | 100 - 240 V AC, 50 - 60 Hz |
| Power Consumption | Approx. 50 W (without accessories) |
| Duty Cycle | 100% |
| Enclosure Rating | IP43 (IP54 optionally available) |
| Dimension | 2210 x 1318 x 2235 mm (3-wing) |
| Temperature Range | -30 to +55 C |
