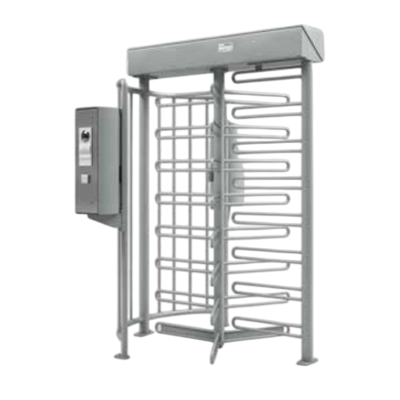

MPT High Turnstile
HIGH TURNSTILE
HIGH TURNSTILE
MPT High Turnstile is a type of full height turnstile typically installed in outdoor areas and company grounds to control pedestrian access with high efficiency. It supports 3-wing and 4-wing configurations with throughput of approximately 20 persons per minute and features Magnetic Safe Drive Solution MSDS for smooth operation with DIN EN 17352 safety compliance. MPT High Turnstile with IP43 enclosure rating and automatic free access on power failure is a reliable solution for secure and reliable outdoor access management.
| Model | MPT High Turnstile |
| Brand | Full Height |
| Categories | Turnstile, Magnetic, Full Height |
Description
| Description | Parameter |
|---|---|
| Number of Wings | 3 (120 degrees) / 4 (90 degrees) |
| Throughput | Approx. 20 persons per minute |
| Drive Technology | MHT (Motorized) / Electro-mechanical / Mechanical |
| Voltage | 100 - 240 V AC, 50 - 60 Hz |
| Power Consumption | Approx. 25 W (Motorized) / 40 W (Electro-mechanical) |
| Duty Cycle | 100% |
| Enclosure Rating | IP43 (IP54 optionally available) |
| Dimension | 1510 x 1288 x 2235 mm (3-wing) |
| Temperature Range | -30 to +55 C |
